■ 基本信息
别名: | pET302NTHis |
启动子: | T7 |
复制子: | pBR322 |
终止子: | T7 terminator |
质粒分类: | 大肠杆菌载体；PET系列表达质粒 |
质粒大小: | 5712bp |
质粒标签: | N-6×His |
原核抗性: | Amp |
克隆菌株: | DH5a |
培养条件: | 37℃，有氧，LB |
表达宿主: | BL21(DE3) |
诱导方式: | IPTG或乳糖及其类似物 |
5'测序引物: | T7:TAATACGACTCACTATAGGG |
3'测序引物: | T7-ter:TGCTAGTTATTGCTCAGCGG |
■ 质粒属性
质粒宿主: | 大肠杆菌 |
质粒用途: | 蛋白表达 |
片段类型: | ORF
|
片段物种: | 空载体
|
原核抗性: | Amp |
真核抗性: |
|
荧光标记: |
|
■ 质粒简介
The Champion pET302/NT-His and pET303/CT-His Vector Kit is designed for cloning a gene of interest via restriction enzyme(s) and ligase (REaL) and subsequent high-level expression from the strong bacteriophage T7 promoter. In addition to the T7 promoter, each vector contains only the necessary functional elements and an N- or C-terminal 6xHis tag (pET302/NT-His and pET303/CT-His, respectively) for convenient purification and detection (Figure 1). Expression levels obtained from these vectors may be higher than those obtained from another suppliers pET vector (Figure 2). To maximize expression, use with MagicMedia E. coli Expression Medium.

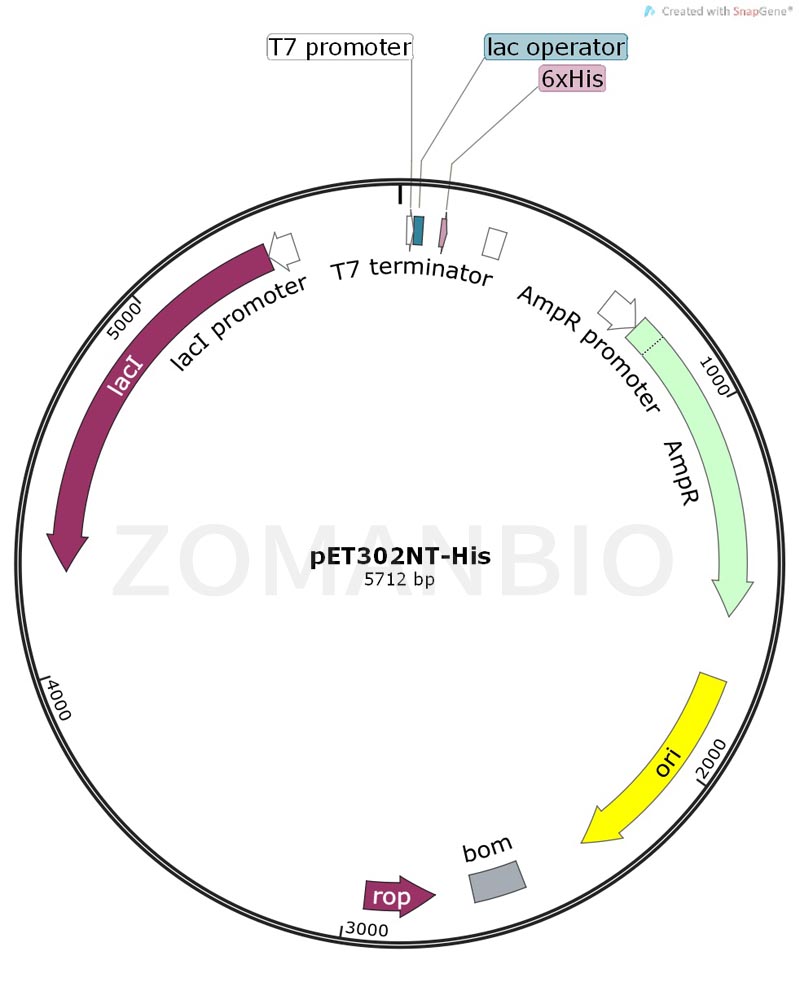

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK192pET302NT-His大肠表达质粒.txt
